Rain Gauge

TF7042Spiegel2

Precipitation sensor type is designed to measure the amount and intensity of rain by using the tipping bucket rain gauge system. The optional type with built-in heating is -in a limited range- able to measure solid precipitation (snow, hail) as well.
The orifice of this instrument is approx. 200 cm², approaching the rules of the German Meteorological Service. The corresponding bucket content is 4 cm³, featuring a resolution of 0.2 mm precipitation.
Precipitation events can be recorded by means of a built-in data logger.




Accessories:
1032.0000: Configuration- and read-out software for precipitation data logger
1032.1000: Interface cablel RS232 for read-out the precipitation data logger
1032.1200: USB interface cable for data read-out
1732.0000: Power supply for type 7042.1000 and 7042.1100
9012.0000: Pole, selfsupporting; for measuring height 1 m

  • Technical Specification
  • Variations
  • Orifice: ca. 200 cm²
  • Resolution: 0.2 mm precipitation
  • Measuring range: 0...15 mm/min intensity
  • Accuracy: ± 5 %
  • Supply voltage: 12 VDC, heating 24 VAC
  • Output: Reed switch
  • Heating power: 24 V / 24 W, thermostat controlled
  • Dimensions: ∅ 165 x 241 mm
  • Weight: approx. 1.3 kg
  • Cable: unheated version: 10 m
    heated version: terminal bar instead of cable
  • note 7042.0000Rain Gauge, resolution 0.2 mm
  • note 7042.0100Rain Gauge, resolution 0.2 mm with data logger
  • note 7042.1000Rain Gauge, resolution 0.2 mm with heating
  • note 7042.1100Rain Gauge, resolution 0.2 mm with heating and data logger
  • note 7053.0000Bird deflector
zurück weiter

7042

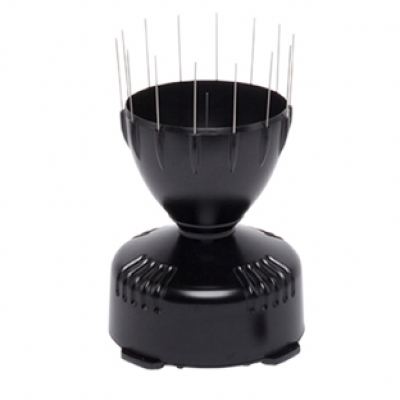

P36

A precipitation sensor according to the tilting balance principle, made of black ABS. Optionally with thermostatically controlled heating.

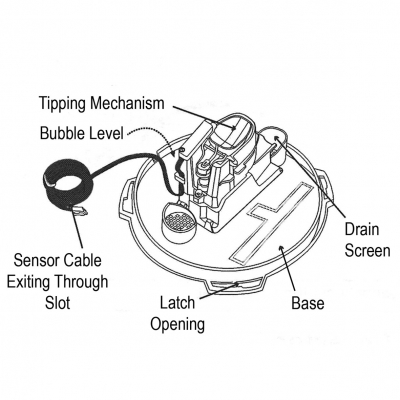

7042 Construction
