Air Temperature Sensor for measurement 5 cm above soil
The temperature sensor type 2019 comprises an encased hard glass platinum resistance Pt 100 according to DIN 60751 B, 1/3 tolerance, which is placed on a plastic shaft and is fastened by means of a screwed joint to the side wall of an aluminium cable box. The screw cap of the screwed joint is connected with a protecting tube, which is perforated so as to enhance the ventilation of the sensor. The fastening of the device is done via two fastening holes, Ø 4 mm, in the bottom of the casing. By unsoldering the 4 connection leads and loosening the screw cap (14 mm width) the protecting tube may be removed so as to make the replacement of the sensor possible. Maintenance is not required, except for an occasional removal of dust. The connection can be realized by means of 3 or 4 line connection.
- Technical Specification
- Variations
- Sensor: PT 100 acc. to DIN 60751 B, 1/3 tolerance, means +/- 0.1 K at 0 °C
- Measuring cable: 4 x 0.5 mm², shielded, LiY(C)Y, L= 3 m
- Operating temp: -40…+60 °C
- Weight: approx. 235 g without basket
approx. 260 g with basket
- note 2014.1000Air Temperature Sensor LTS 2000 for measurement 5 cm above soil

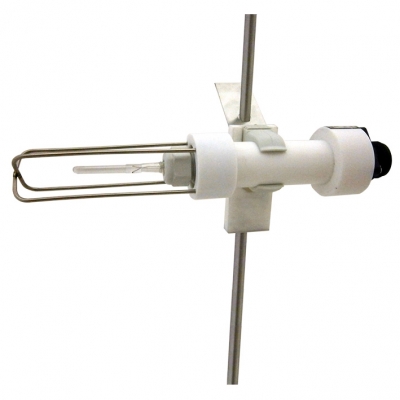

Air temperature sensor 5 cm above soil

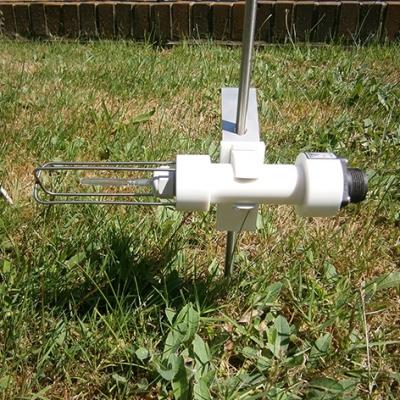

Air temperature sensor 5 cm above soil
Air temperature sensor 5 cm above soil

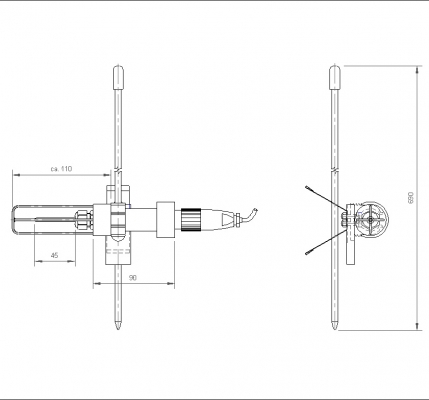

Dimension drawing
