Test & Calibration

Testing and calibration equipment for all kind of meteorological sensors

Pressure Chamber

TF8700web2

Pressure/vacuum chamber for testing several aneroids, barotransmitters,  barographs, mercury barometers (with hood, type 8701); test chamber  consists of cylindrical steel body, coated, with flange covered by a steel plate  (or hood 8701) and sealed by means of an O-ring; a large inspection pane in  the door made of 40 mm acrylic glass; built-in vibrating table with rung stand,  actuated by push-button from outside; on the right 8 electrical ducts, on the left  two air inlets NW 10 for connection to Hg-test barometer or other external  units; operating valves at the front.



Accessories:

8701.0000: Hood with holder for barometer

8720.2000: Heavy duty table

8777.5000: Table top housing with reference sensor (automatic operation)

Measuring cable set

  • Technical Specification
  • Variations
  • Operating range: 100...1100 hPa, other ranges up on request
  • Dimensions: 755 x 810 x 1125 mm (LxWxH)
  • Weight: approx. 225 kg
  • Volume of chamber: 234 l
  • note 8700.0000Pressure Chamber c/w base, fittings, vibrating table and crossbar mount
  • note 8777.0000Table Top Housing for pressure chamber type 8700 / 8710
  • note 8777.0001Table Top Housing
  • note 8777.5000Automatic Control for pressure chamber type 8700 / 8710
zurück weiter

8700

P8700web2

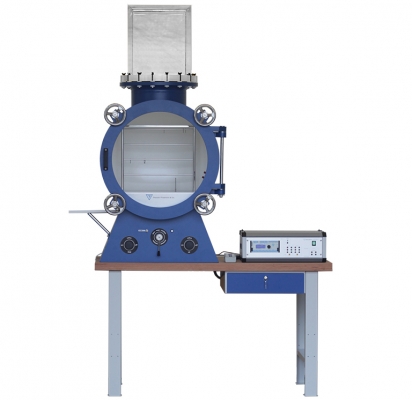

Pressure Chamber with heavy duty table and table top housing

8700

P6

Barograph type 5016 in the test chamber

8700

P6Druckkammer

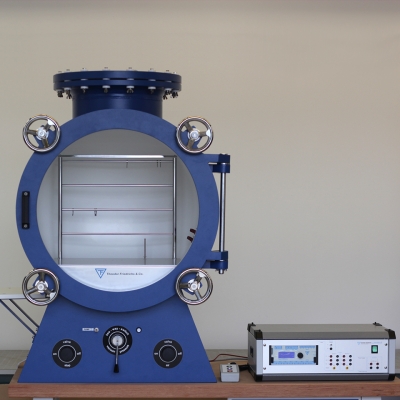

Pressure Chamber without hood

8700

P8700Druckkammer

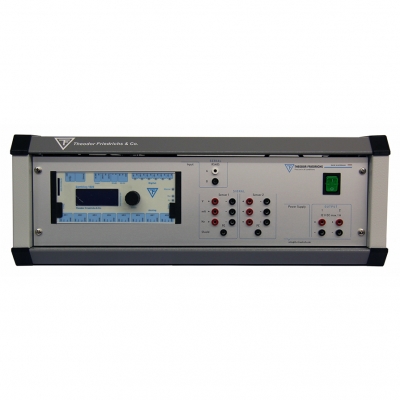

Table Top Housing 8777.5000

WEBFront87775000 mit Fhler4

Front

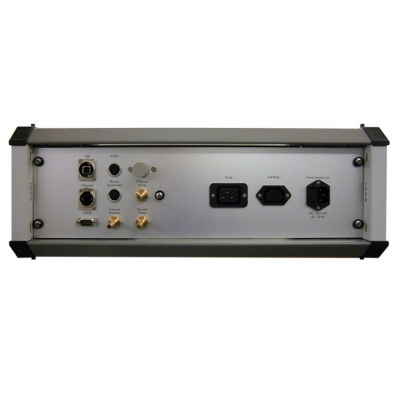

Table Top Housing 8777.5000

WEBRckseite87775000 mit Fhler4

Back

8700.5000

P5Steuerung

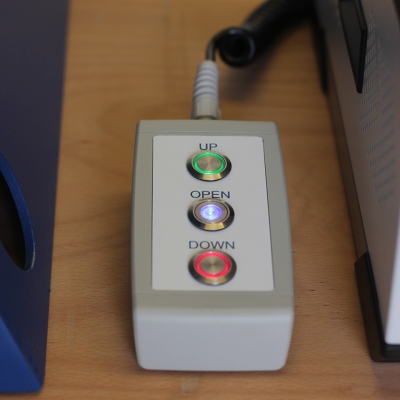

Manual Control
