Anemometer to measure the wind speed and the wind direction

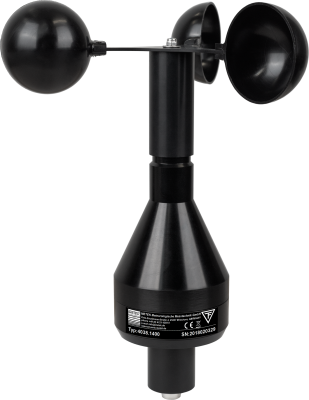

Wind Speed Sensor, Heavy Duty Design
The wind speed sensor type 4035 serves for transmission of electrically measured values of the wind speed. It is designed for operation in meteorology and environmental protection, e.g. automatic weather stations, at airports, on research vessels, at industrial sites, for mobile measuring systems etc..The instrument’s rugged construction and its dust- and water repellent surface, as well as the optional high performance heating enable heavy duty applications like wind energy measurement or operation under severe climatic conditions. Thanks to various simultaneously usable outputs and further options it is suitable for a wide range of measuring tasks (refer to “ordering code”).
- Technical Specification
- Variations
- Measuring range: 0...70 m/s
(0...60 m/s for analog outputs) - Max. load: 100 m/s
- Starting threshold: approx. 0.3 m/s (standard version)
0.21 m/s (sensitive version) - Response length: at v = 5 m/s:
< 2.5 m (standard version)
2.0 m (sensitive version) - Accuracy: +/-0.5 m/s;
from 10 m/s 2% of range - Compliances: WMO Guide No. 8/7th ed.
VDI 3786, T.2, 12/2000
MEASNET - Supply: Electronics:
4035.0000: 10...30 VDC; < 5 mA at 12 V
4035.1000: 10…30 VDC; 25…65 mA at 12 V
Heating:
10…30 VDC; approx. 7 W
High performance heating:
24 VDC; approx. 60 W - Output: Digital:
0…70 m/s = 0…700Hz, Open Collector
Analog (4035.1XXX only):
0...60 m/s = 0...1 V / 0...20 mA / 4...20 mA - Admissible load: approx. 400 Ω
- Admissible ambient temperature: -25…+80°C;
-40…+80°C (with high performance heating) - Protection class: IP65, when operated upright
- Housing material: Aluminium alloy
- Heating: controlled by thermostat, max. 7 W
(max. 60 W with high-performance heating) - Connection: 12 p., plug and socket, water and dust proof acc. to IP67
- Dimensions: length: approx. 275 mm
cup assembly Ø: 224 mm
max. housing Ø: 80mm
pivot: Ø 34 x 40 mm
weight: approx. 0.685 kg
- note 4035.0000Frequency output 0...700 Hz, Open Collector; with built-in heating
- note 4035.0001Frequency output 0...700 Hz, Sensitive version, Open Collector; with built-in heating
- note 4035.0100Frequency output 0...700 Hz, Open Collector; with high-performance heating max. 60 W
- note 4035.0101Frequency output 0...700 Hz, Sensitive version, Open Collector; with high-performance heating max. 60 W
- note 4035.1000Frequency output 0...700 Hz, Open Collector, analogue outputs 0...20 mA / 4...20 mA / 0...1 V; with built-in heating
- note 4035.1001Frequency output 0...700 Hz, Sensitive version, Open Collector, analogue outputs 0...20 mA / 4...20 mA / 0...1 V; with built-in heating
- note 4035.1100Frequency output 0...700 Hz, Open Collector, analogue outputs 0...20 mA / 4...20 mA / 0...1 V; with high-performance heating max. 60 W
- note 4035.1101Frequency output 0...700 Hz, Sensitive version, Open Collector; analogue outputs 0...20 mA / 4...20 mA / 0...1 V; with high-performance heating max. 60 W
