Test & Calibration
Testing and calibration equipment for all kind of meteorological sensors
Temperature Test Cabinet
The measuring range of the Temperature Test Cabinet is from -40° to +180°C. It is designed mainly for testing of temperature sensors, thermographs etc.. It can also be used for material testing. The Temperature Test Cabinet has the perfect relation of outside dimensions, test space, performance and operating costs.
The compact Test Cabinet offers a large test space. Up to three 19"-slide in module or four thermographs can be tested at the same time. We will also offer other sizes up on request.
- Technical Specification
- Variations
- Test space: ca. 110 l
- Operating range: -40...+180 °C
- Rate of temperature change: Cooling: 3,5 K/min
Heating: 3,5 K/min - Heat compensation at 20°C: max. 1000 W
- Test space dimensions: 630 x 560 x 350 mm (HxWxD)
- Housing dimensions: 1640 x 850 x 1030 mm (HxWxD)
8121

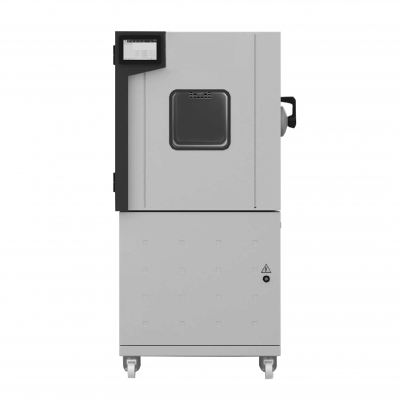

Temperature Test Cabinet
8121

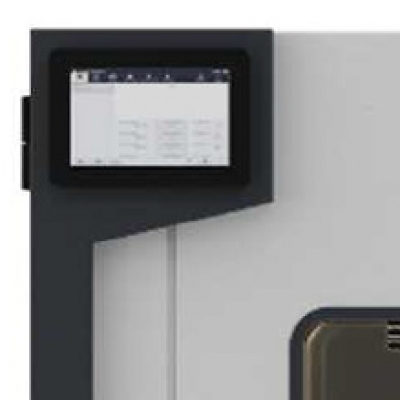

Panel
8121

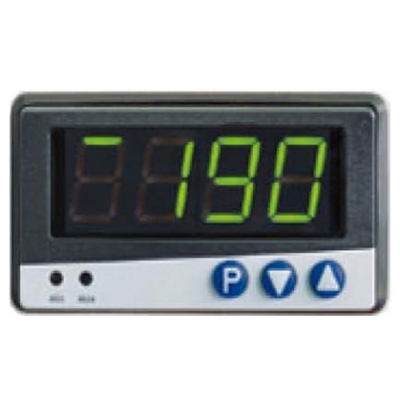

Temperature Limiter
8121

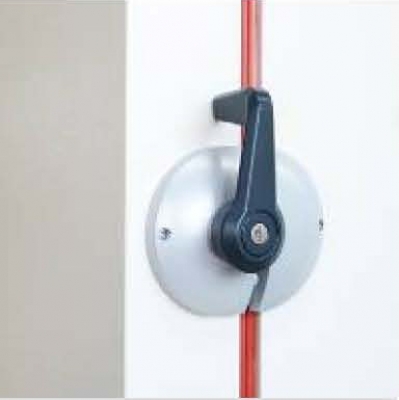

Door Lock
8121
Testspace
8121

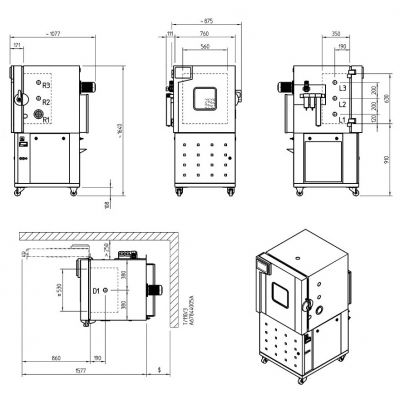

Layout
